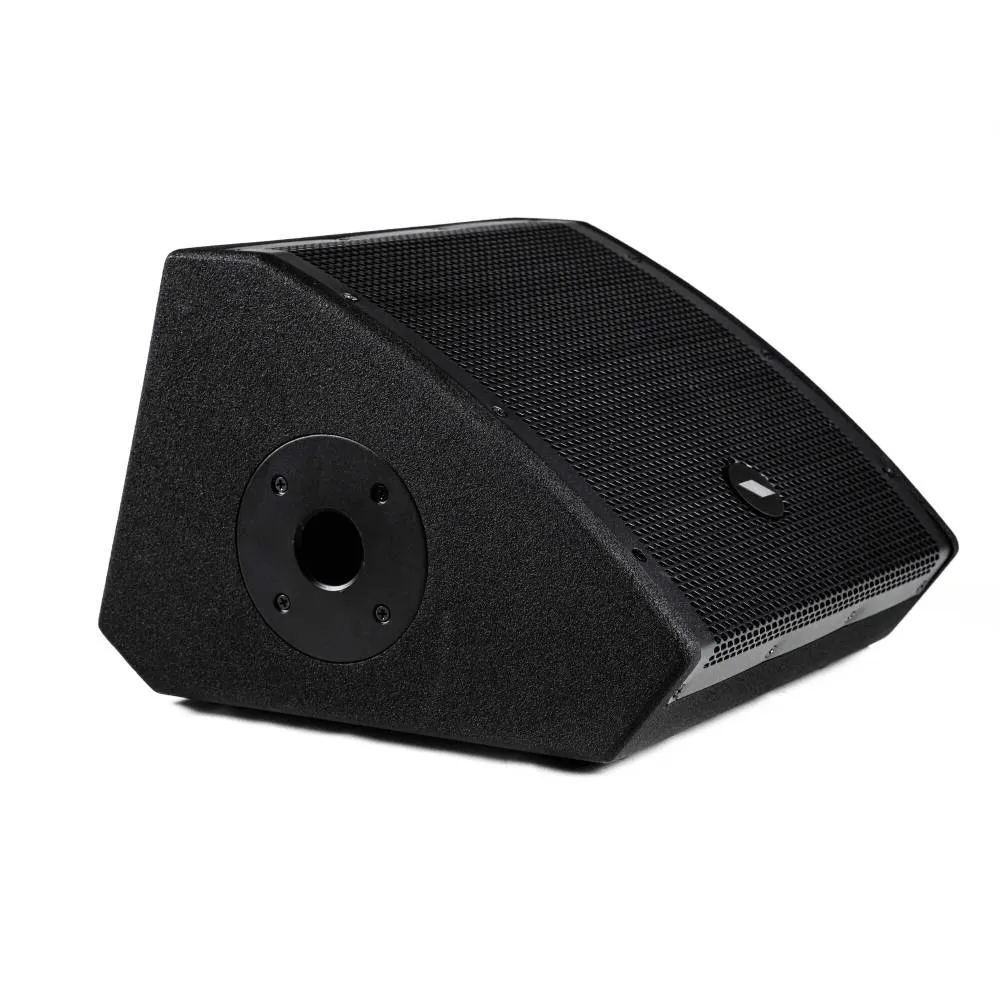

Proel WX8A Active 2-Way Coaxial Stage Monitor Foldback Speaker 500W
WX series stage monitors, with a perfect sound intelligibility, a high SPL and an ultra-compact format, can offer a professional yet affordable monitoring solution able to fit into stages of any size.
The transducers’ coaxial design not only provides an optimal HF and LF alignment and a controlled directivity for a perfect listening from any position, but it also helps to minimize the size of the monitor. The ultra-compact enclosures, with integrated handle and pole socket, have been designed to feature a very low profile and, therefore, a minimal footprint on stage. The cabinets are finished with extra-strong polyurethane painting, making them resistant to any abuse.
The lightweight 500W CLASS D amplifier module with SMPS provides a high output that results in an unexpected SPL for such small loudspeakers. The sophisticated analogue processing provides a detailed response, particularly in the vocal range, and a remarkable resistance to feedback. Two EQ PRESETS are available for the use of the speaker not only for stage monitoring (MONITOR), but also as a MAIN SOUND SYSTEM (FOH) if necessary.
The WX monitors are available in two models, offering the right solution for different monitoring situations. The ultracompact WX8A can provide a high-quality monitoring also in very small spaces and it can give its best with speech, vocals and acoustic instruments. WX10A, with a higher SPL and a full-range response, is ideal for vocals, guitar, horns and electronic instruments or as a monitor for DJs.
- Active 2-way coaxial stage monitor
- Compression Driver with 1” VC
- 8” woofer with 2” VC
- 500 W total power
- Class D power amplifier with SMPS
- Dual LIMITER circuit
- 2 optimized EQ PRESETS for MONITOR or FOH use
- SPL MAX 122 dB
- Frequency response 80 Hz – 20 KHz
- Ultra-compact, lightweight cabinet with black ultra-durable polyurethane paint

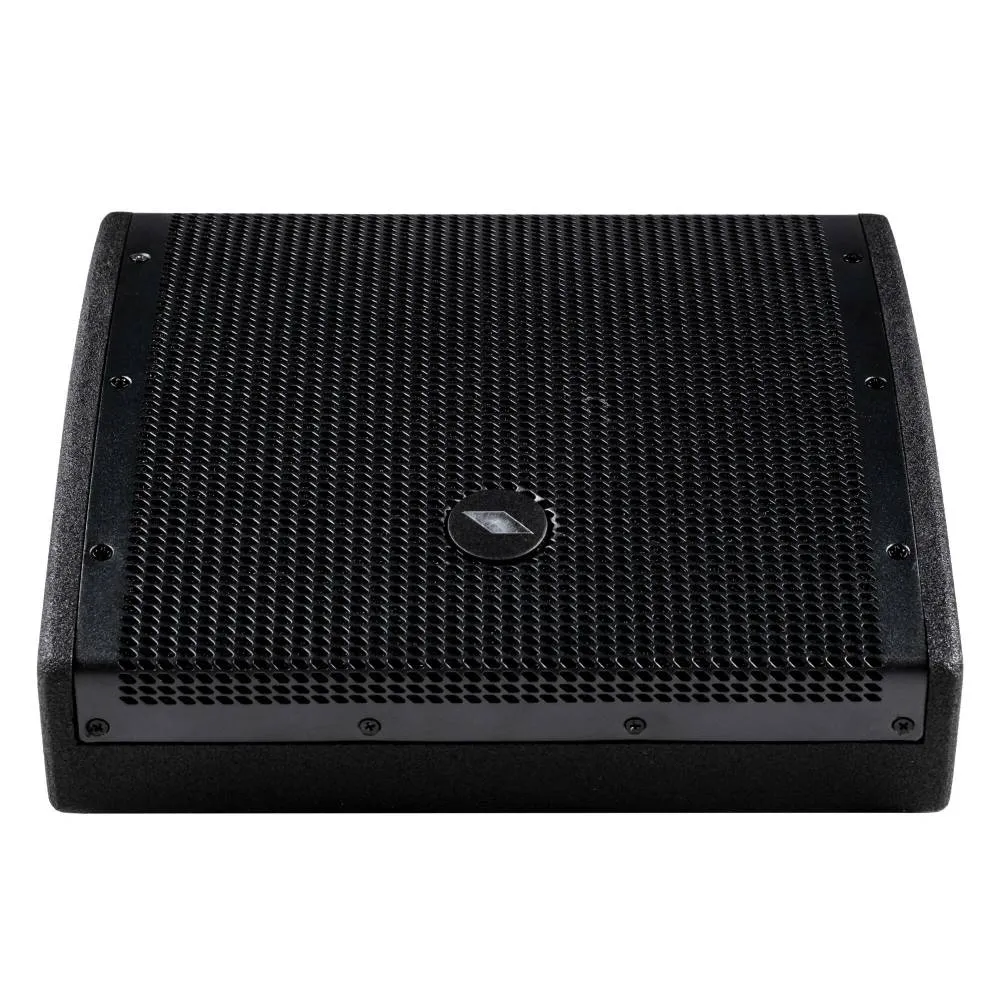

- Reinforced metal grille

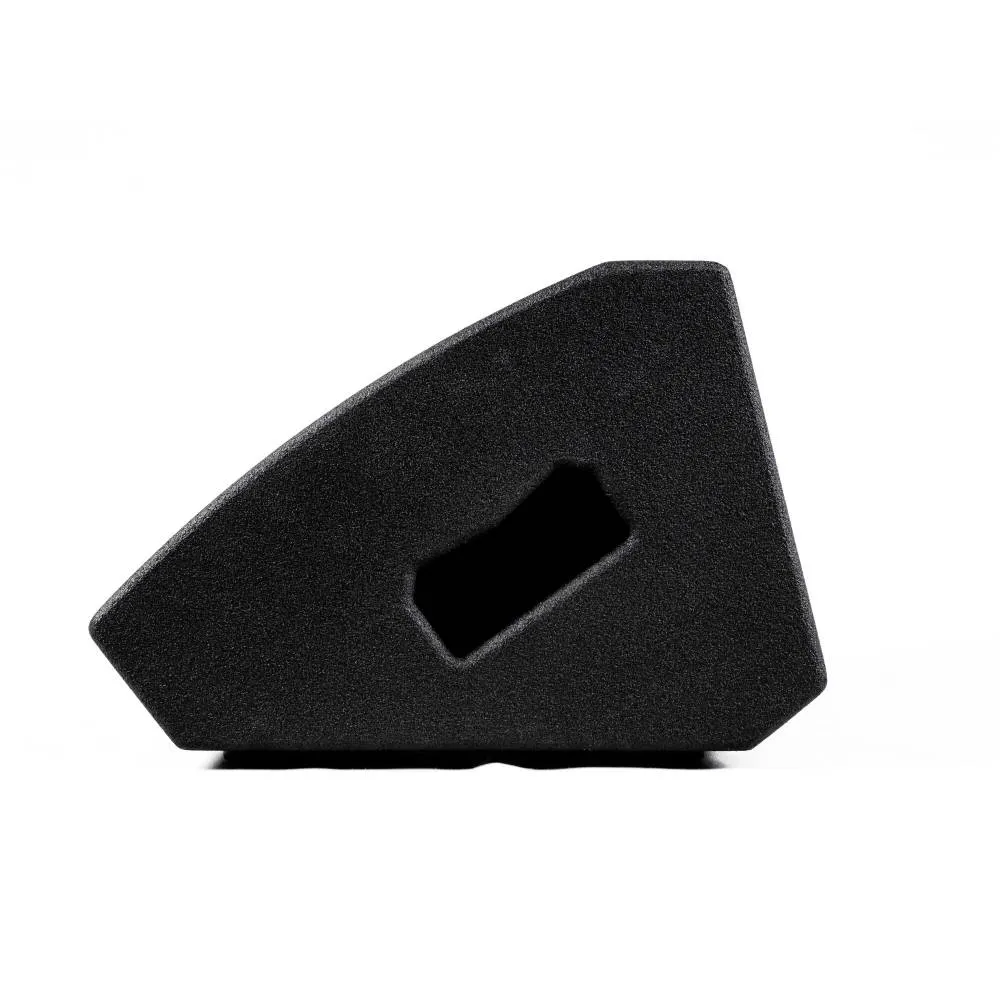

- Recessed handle for easy transport

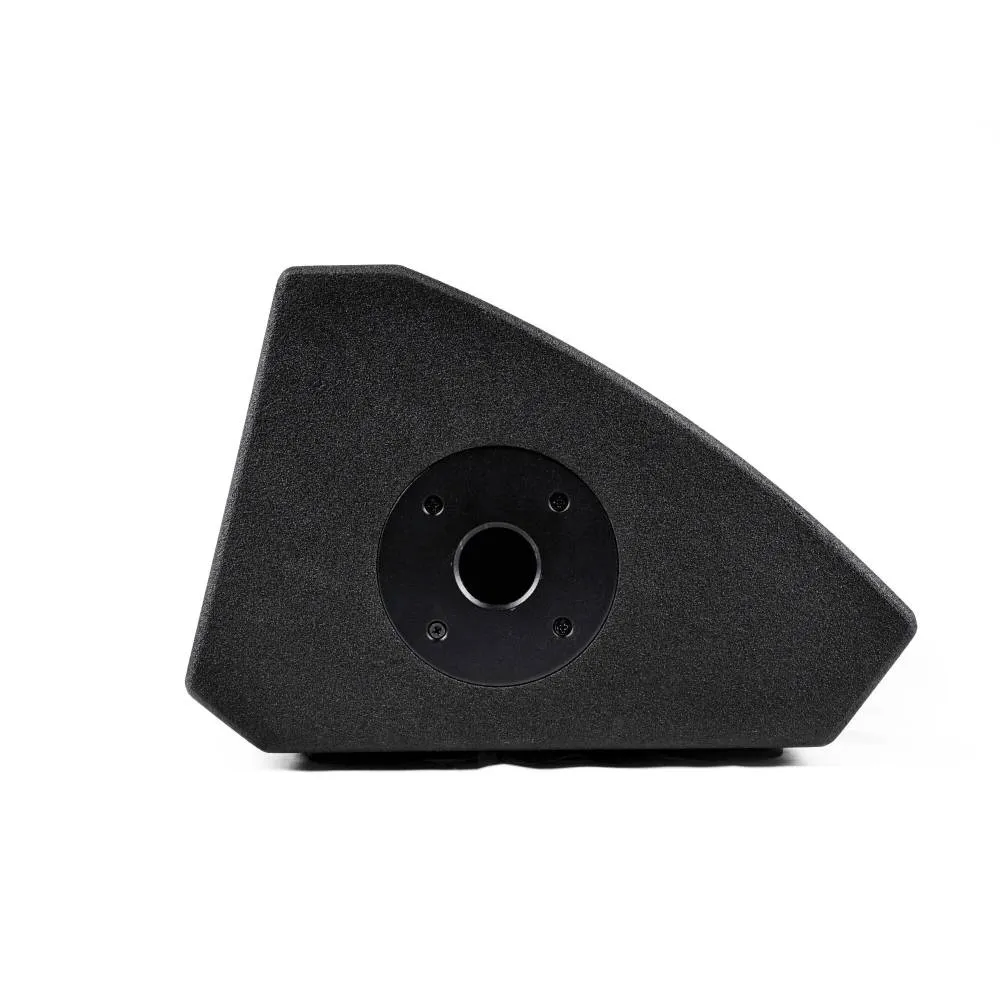

- Pole socket
Technical Data
| System type: | 2-way coaxial vented stage monitor |
|---|---|
| Low Frequency Device: | 8” woofer with 2″ VC |
| High Frequency Device: | 1” compression driver with 1″ VC |
| Angular Coverage: | 60° |
| Frequency response: | 80 Hz – 20 kHz |
| Max SPL at 1mt (peak): | 122 dB |
| Amplifier Continuous Power: | 250W CLASS D with SMPS |
| Input Impedance: | 30 kohm balanced, 15 kohm unbalanced |
| Input Sensitivity: | -10 dBu |

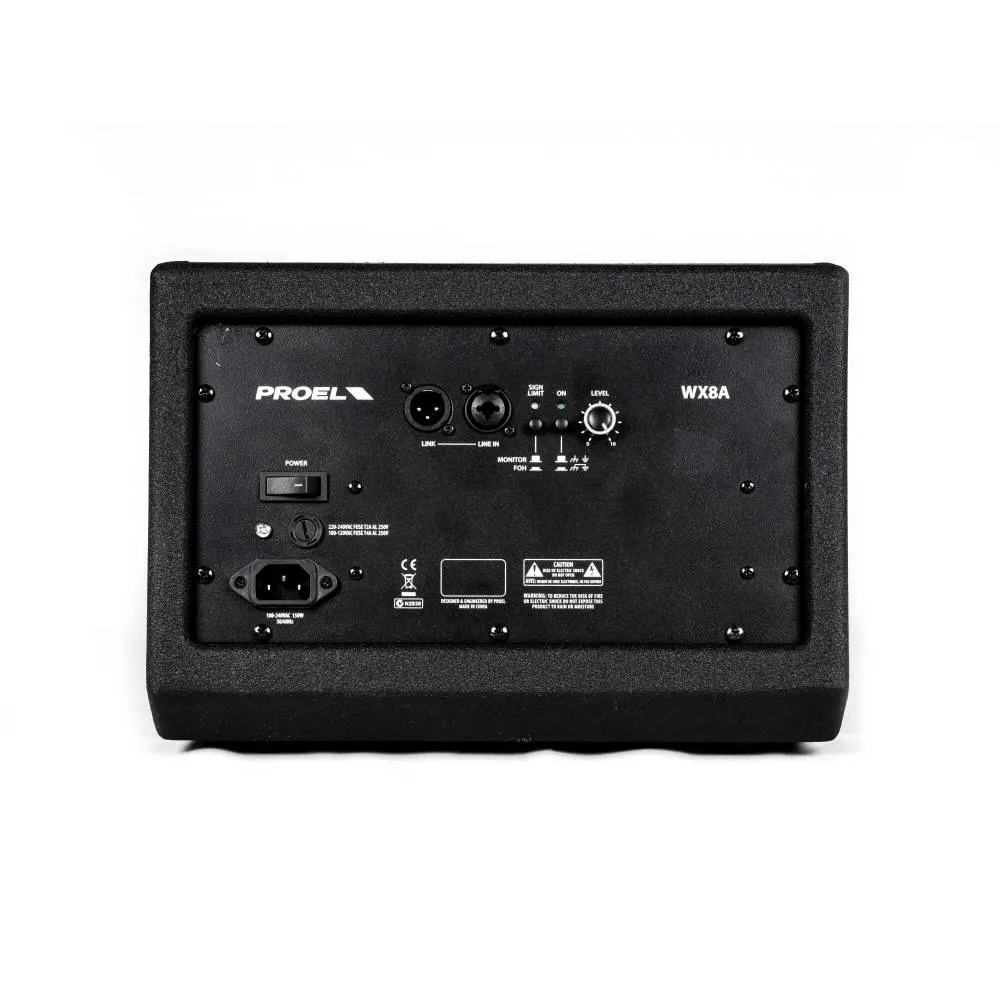

| Controls: | LEVEL, PRESET selector (MONITOR, FOH), GND lift |
| Connectors: | INPUT: COMBO (XLR-F/JACK), LINK: XLR-M |
| Power Supply: | 230 VAC or 115 VAC – 50/60 Hz |
| Rated Consumption: | 200 W |
| Construction: | MDF with black anti-scratch polyurethane paint |
| Pole Adapter: | 1 x side |
| Handles: | 1 x side |
| Monitor taper: | 36° |
| Weight: | 8 kg |
| Dimensions (W x H x D): | 325 x 336 x 233 mm |
