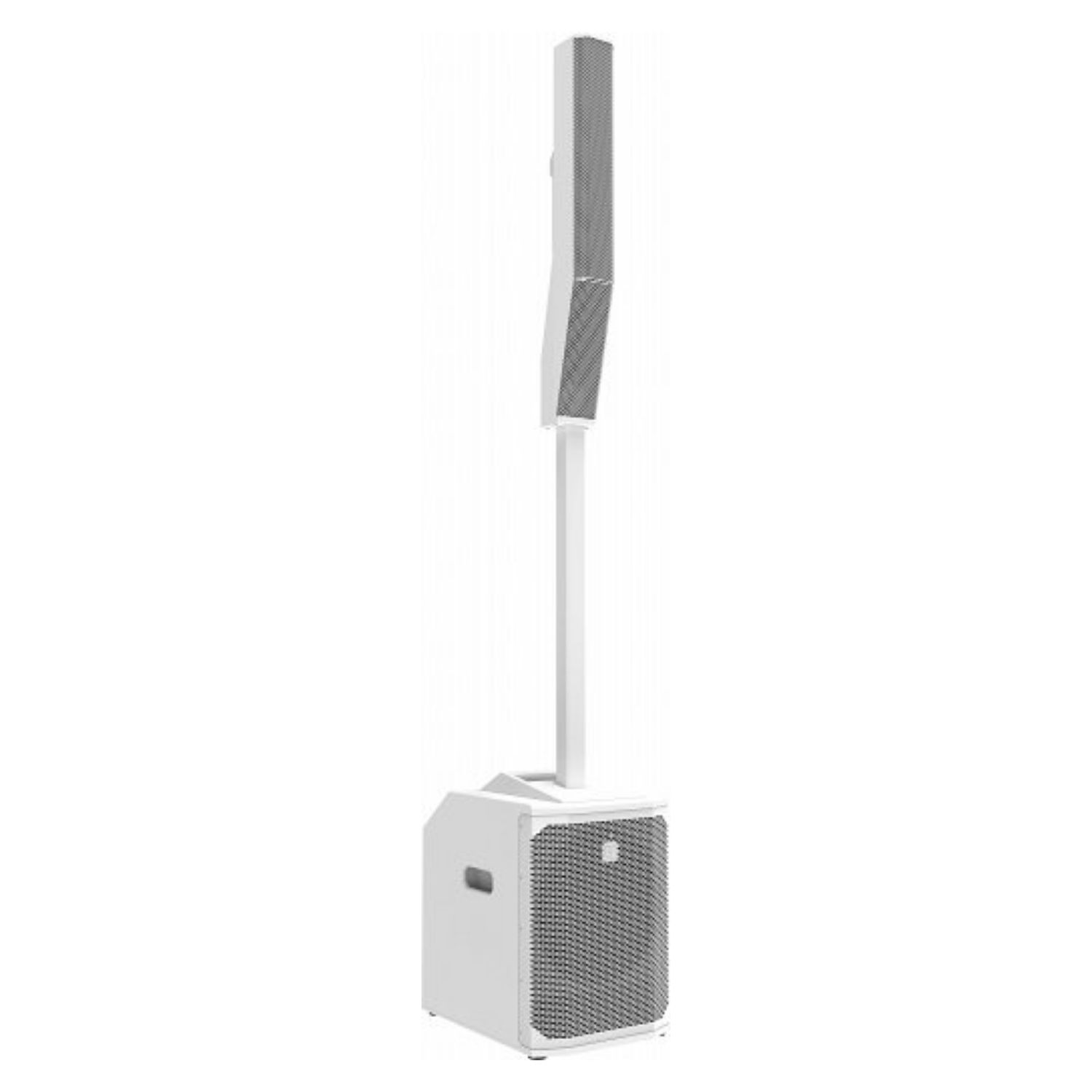

Electro-Voice is expanding its industry-leading EVOLVE series with the launch of the EVOLVE 50M column loudspeaker system. The EVOLVE 50M features ElectroVoice’s new QuickSmart Link digital audio and control technology, an onboard mixer, DSP and effects – all combined within the sleek EVOLVE 50 format. The EVOLVE 50M is the perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.
| Column array | 8x 3.5” neodymium drivers |
| Subwoofer | 1x 12” |
| Frequency response (-3 dB) | 43 Hz – 20 KHz |
| Frequency range (-10 dB) | 37 Hz – 20 KHz |
| Maximum SPL | 127 dB |
| Coverage (H x V) | 120° x 40° |
| Amplifier rating | 1000 W |
| LF channel rating | 500 W |
| HF channel rating | 500 W |
| Crossover frequency | 200 Hz |
| Connectors | 4x XLR/TRS combo jack line/mic input 2x XLR/TRS combo jack for stereo line input 1x 1/4” TRS Hi-Z input 1x stereo RCA input 1x 3.5 mm stereo input 1x wireless stereo Bluetooth® audio input 1x 1/4” foot switch input 1x XLR mix out output 1x XLR aux out output 1x RJ45 QuickSmart Link connector |
| Enclosure | Column: composite Pole: aluminum Sub: 15 mm plywood |
| Grille | Steel with black or white powder coat |
| Colors | Black or white |
| Dimensions (HxWxD): in (mm) | Column: 32.5 x 4.0 x 6.9 (825 x 102 x 172) Pole: 36.6 x 1.9 x 2.2 (929 x 48.5 x 55) Sub: 20.9 x 13.6 x 18.5 (530 x 345 x 471) Assembled: 80.5 x 13.6 x 18.5 (2045 x 345 x 471) |
| Net weight: lbs (kg) | Column: 10.34 (4.7) Pole: 2.75 (1.25) Sub: 44.66 (20.3) Total: 57.75 (26.25) |
| Power consumption | 100-240 V AC, 50-60 Hz, 1.5-0.6 A |
